TDF Duct Corner Fitting Machine
TDF Duct Corner Fitting Machine
TDF Duct Corner Fitting Machine
TDF Duct Corner Fitting Machine

TDF Duct Corner Fitting Machine

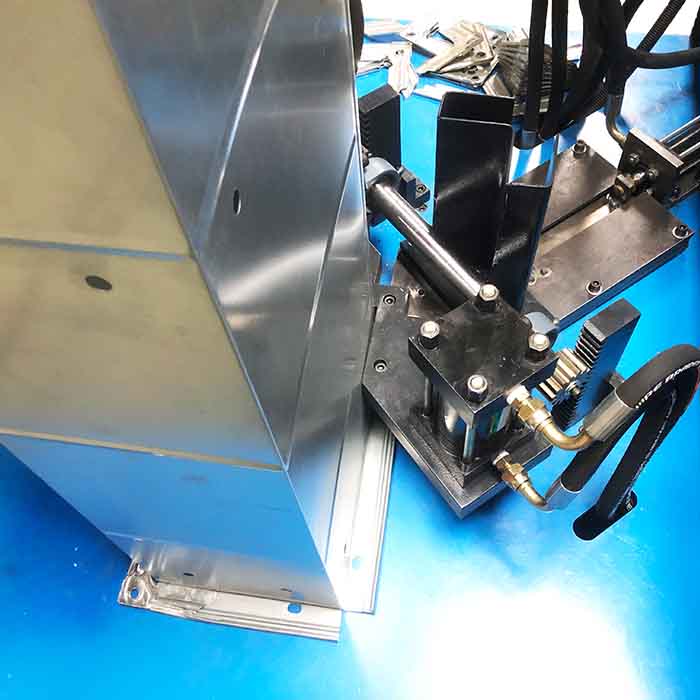

TDF duct corner fitting machine will save your labor cost on the duct corner fitting production. Put the duct on appointed position, the machine does the following job of corner feeding, pressing and fixing automatically. The machine is hydraulically driven, the working pressure is more stable, and the TDF corner fitting is more efficient and stable.

Manual and automatic control to complete the TDF duct corner fixing steps.

Fitting block made of high quality alloy die steel.

The synchronizing rod ensures simultaneous pressing on both sides.

High quality power motor.

High-quality hydraulic valve group ensures stable work.

Large size hydraulic oil tank design ensures fast hydraulic heat dissipation.

Customized request voltage.

Descriptions TSC-1
Working Material Galvanized steel sheet
Material Thickness 0.5-1.2mm
Hydraulic Pressure 8Mpa
Dimension 1250*1100*1330mm
Weight 440kg
