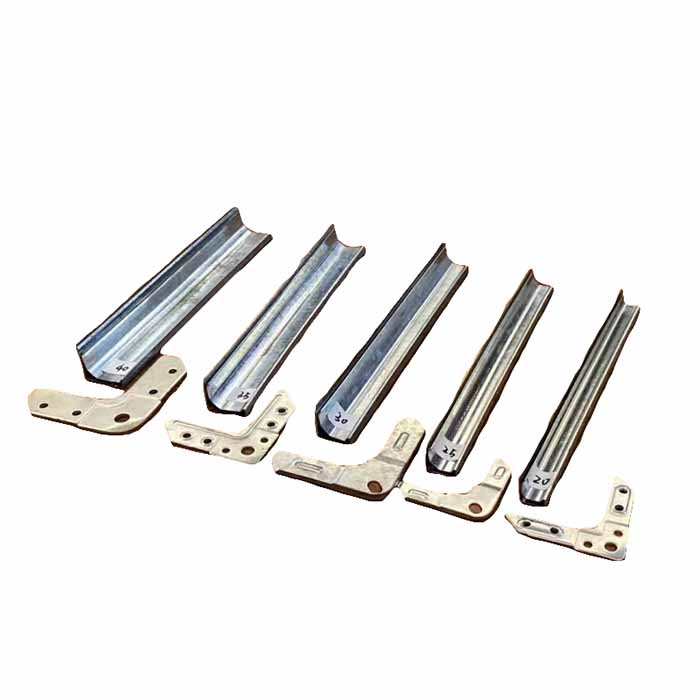

Duct TDC flange forming machine roll forming your own TDC flanges with 17 forming stations on transverse duct ends during the manufacturing process has never been easier. The TDC flange, per Duct Construction Standard specifications, is formed on the machine starting from decoiler, feeder, roll forming machine, cutting machine and stacking device automatically. . Also according to the different use the thickness of flanges can be selected from maximum 1.2mm to 1.5mm. The material of stainless steel material also can proceed on the machine.

Multifuntion for total duct TDC flange roll forming.

The maximum load of the opening rack is 2 tons.

17 forming rolls to ensure roll forming quality.

Roller made of high quality alloy die steel.

Needle roller bearings are suitable for high-intensity work.

Durable wear-resistant transmission gear.

High quality power motor.

Follow-up circular saw cut to length.

Cut to length by program as option.

High-strength machine support frame.

Customized request voltage.

Model T-20 T-30 T-40 T-25 T-35
Working Thickness 0.5~0.8 mm 0.8~1.0 mm 1.0~1.2 mm 0.8~1.0 mm 10.~1.2 mm
Roller Material GCr15
Roller Shaft Material Thermal refined 45#
Transmission Chain
Control Normal electric control
Working Speed 8 m/min 8 m/min 8 m/min 8 m/min 8 m/min
Power Supply 4 kw 4 kw 4 kw 4 kw 4 kw
Dimension 4300X750X1500 mm 4300X750X1500 mm 4300X750X1500 mm 4300X750X1500 mm 4300X750X1500 mm
Weight 2200 kg 2500 kg 3000 kg 2500 kg 3000 kg
