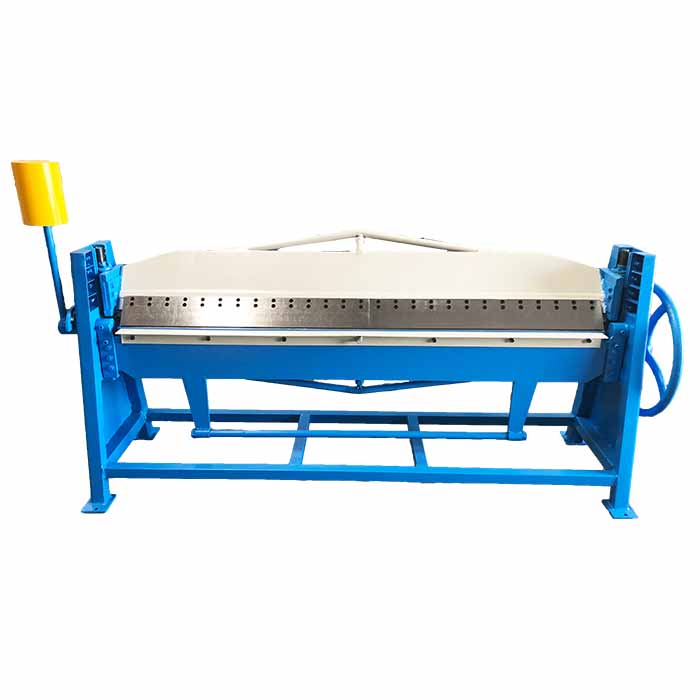

TDF Duct Hand Folder Machine

TDF Duct Hand Folder Machine


TDF Duct Hand Folder Machine
TDF hand folder is suitable for small to medium volume workshops with special design of folding blade can bend different size of square air duct.
Locking system has two different types with Cam Lock and Gear Lock.
Specially designed folding tool for quick folding of TDF flanged air ducts.
The handwheel controls the upper knife to fix the sheet to be folded.
Folding tool made of special alloy die steel.
Folding tool is processed with high precision to ensure the straightness of bending.
Manual folding without hydraulic or pneumatic power requirements.
Model | WS-1.5X1300TDF | WS-1.5X2000TDF | WS-1.5X2500TDF |
Material Sheet | Galvanized sheet | Galvanized sheet | Galvanized sheet |
Material Thickness | 1,5mm | 1,5mm | 1,5mm |
Folding Width | 1300mm | 2000mm | 2500mm |
Min Folding Size | 200X200mm | 200X200mm | 200X200mm |
Dimension | 1850X710X1400mm | 2600X710X1400mm | 3100X840X1520mm |
Weight | 415kg | 605kg | 800kg |
