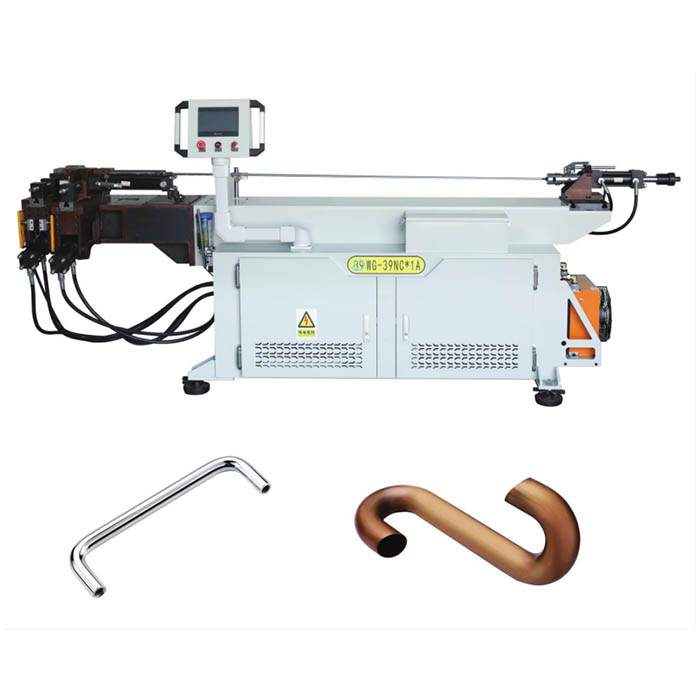

Servo Single Head Tube Bending Machine
Servo Single Head Tube Bending Machine
Single-head pipe bender is a metal pipe processing equipment with only one bending head, which performs bending operation on one end of pipes. It is suitable for bending round tubes, square tubes and special-shaped tubes, widely used in furniture, automobile, hardware and sanitary ware industries.
Single-head pipe bender is a metal pipe processing equipment with only one bending head, which performs bending operation on one end of pipes. It is suitable for bending round tubes, square tubes and special-shaped tubes, widely used in furniture, automobile, hardware and sanitary ware industries.
| Main specifications/models |
WG-39NC×1A |
WG-50NC×1A |
WG-66NC×1A |
| Maximum bending capacity(CLR1.5D) | Ø38×1.5t | Ø50.8×1.5t | Ø66×2.0t |
| *Maximum bending radius mm | 150 | 220 | 250 |
| Maximum bending angle° | 190 | 190 | 190 |
| Maximum core-piercing length mm | 1650 | 1650 | 1850 |
| Number of servo axes | 1-axis | 1-axis | 1-axis |
| Bending accuracy | ±0.1° | ±0.1° | ±0.1° |
| Machine size mm | 3320*1000*1480 | 3520*1100*1480 | 4120*1200*1550 |
| Machine weight kg | 1200 | 1500 | 2650 |
