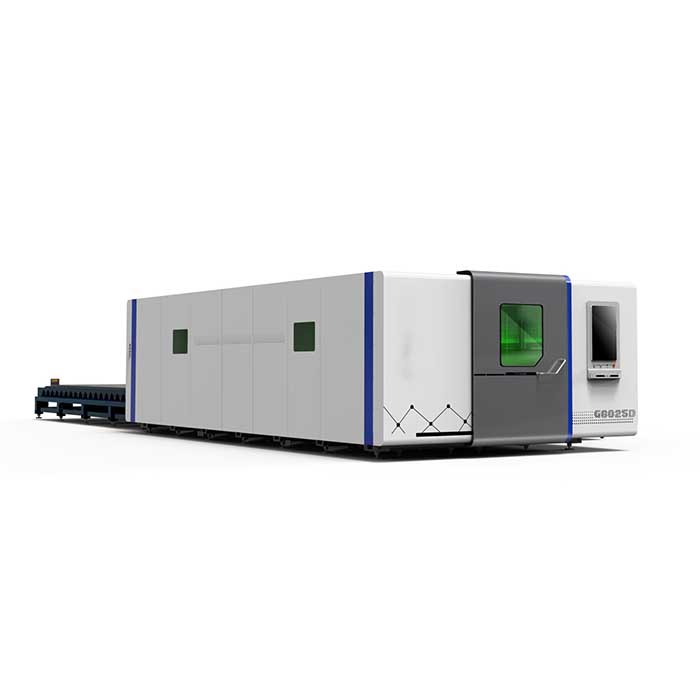

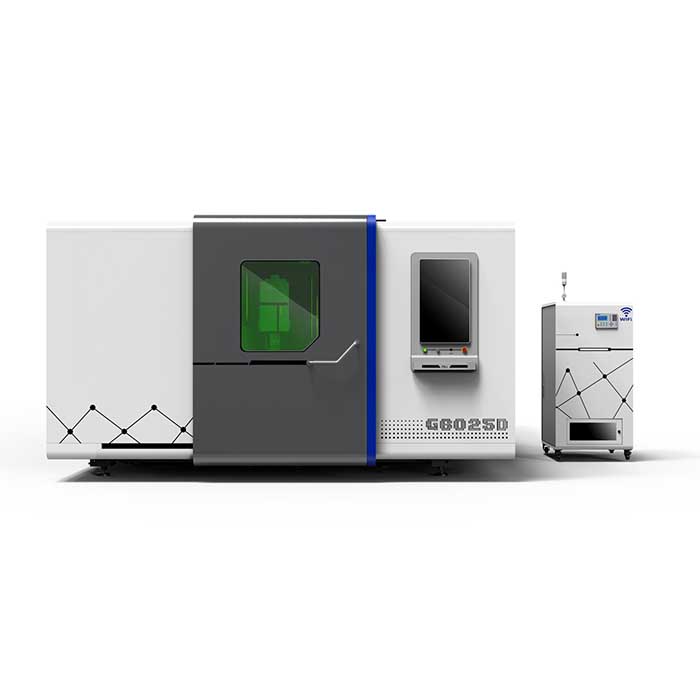

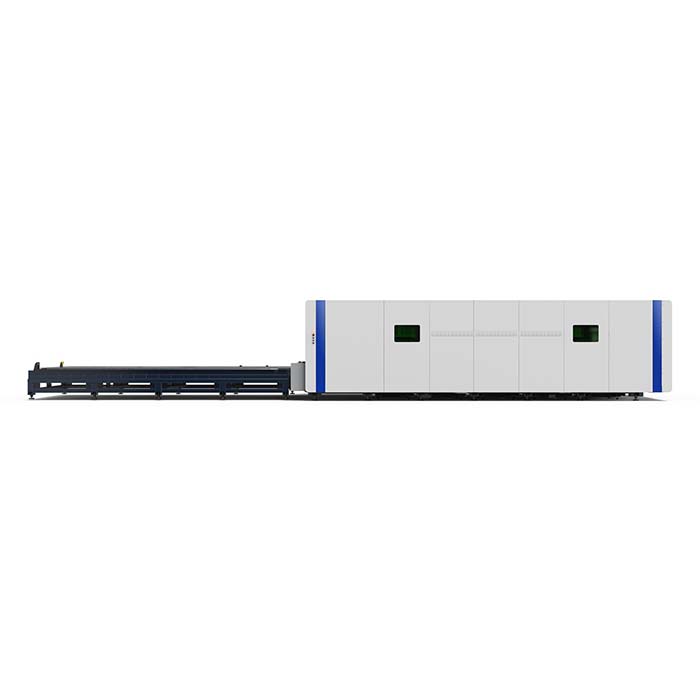

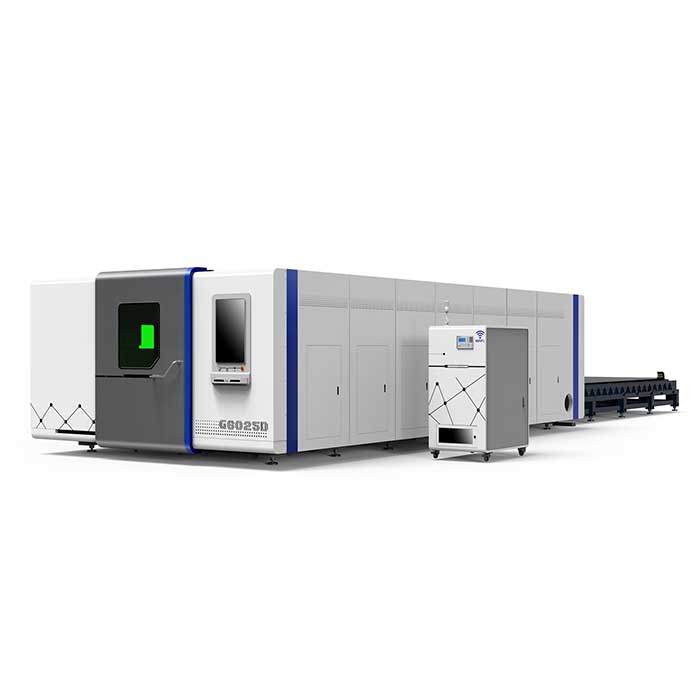

High Power Fiber Laser Cutting Machine
High Power Fiber Laser Cutting Machine
High Power Fiber Laser Cutting Machine
High Power Fiber Laser Cutting Machine
High Power Fiber Laser Cutting Machine
Our fiber laser cutting machine allows you to complete cutting tasks more efficiently, and the machine is compatible with different file formats to improve working efficiency. Laser cutting can be applied to the cutting of different materials such as stainless steel, carbon steel, galvanized sheet, and aluminum sheet. Depending on the material and thickness of the plate, we can choose different power laser generators.
Pipe welding machine frame.
WIFI wireless control, remote fault detection.
Switzerland RAYTOOLS laser head.
Japan YASKAWA servo motor.
France Motovario reducer.
France Schneider electronic components.
Taiwan Air Tac pneumatic components.
HIWIN bearing and YYC gear transmission.
Automatic lubrication system for Gear and rack.
Auto Touch screen and cypcut system.
|
Working area |
6000*2000mm |
|
???ѧ?.Acceleration |
1.4G |
|
???ѧ?.speed |
140m/min |
|
X axis stroke |
6100mm |
|
Y axis stroke |
2070mm |
|
Z axis stroke |
280mm |
|
Position accuracy |
0.03mm |
|
Re-position accuracy |
0.02mm |
|
X axis liner guide |
HIWIN 35# |
|
Y axis liner guide |
HIWIN 25# |
|
Z axis liner guide |
HIWIN 20# |
|
Rack and gear |
YYC |
|
Reducer |
Nidec Japan shimpo |
|
Ball screw |
PMI |
|
Machine body |
Plate welding (Thickness 12?ާ?) |
|
Beam |
Cast aluminum |
|
Lubrication |
Auto |
|
Servo motor |
YASKAWA |
|
X axis power |
1.8×2 kw |
|
Y axis power |
0.85 kw |
|
Z axis power |
0.4 kw |
|
Power supply |
380V/50Hz |
|
Control system |
Cypcut China |
|
Model FSCUT2000C |
|
|
Elec. element |
Schneider/Omron |
|
Pneumatic element |
SMC/Airtac |
|
Power of fan |
3 kw |
|
Water chiller |
Hanli |
|
Power of laser source |
IPG, Max |
|
Dimension |
15200*3480*2300mm |
|
Weight of machine(Without chiller,fan and laser source) |
10600 kg |
