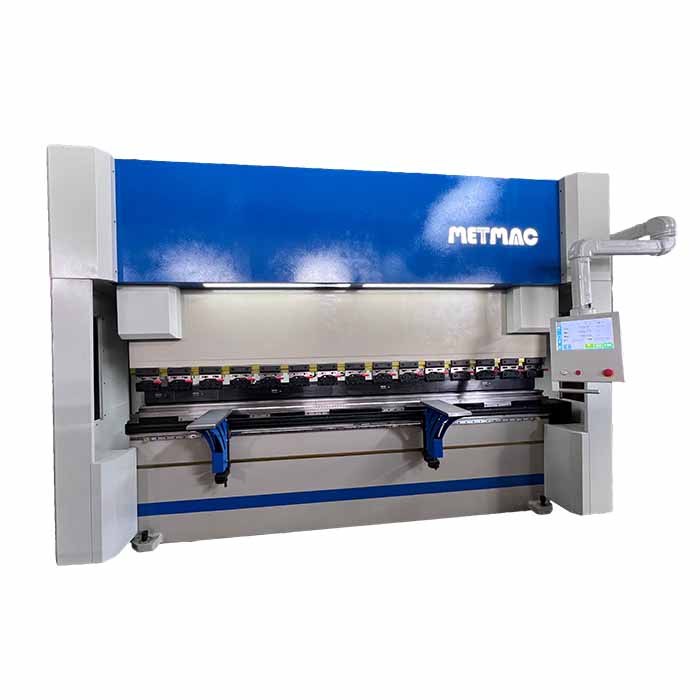

Dual Servo Press Brake

Extreme energy saving (energy consumption reduced by more than 70%) Intelligent power matching: servo motors work only when actually needed, zero energy consumption at no load. Dynamic flow adjustment: variable pump displacement matches the process demand in real time, no overflow loss. Measured data: 200T model consumes only 18kWh of electricity in a single shift (8 hours), saving 72% compared to traditional hydraulic presses.

Ultra-precision control (repeatable positioning accuracy ± 0.002mm) Direct drive technology: eliminate pressure fluctuations caused by hydraulic valve throttling. Raster scale resolution: 1nm feedback, 5 times more accurate than traditional models.

Extremely fast response (flow response <10ms) Servo motor: 0-3000rpm acceleration time 50ms. Variable pump: Displacement switching time 8ms. Actual effect: fast descending speed up to 250mm/s, work speed fluctuation <±0.1%.

Intelligent process self-adaptation Material characteristics library: pre-stored 500+ kinds of material parameters.

Real-time compensation Thickness deviation compensation (±0.1mm automatic adjustment). Temperature drift compensation (± 0.01° / ℃). Case: 3mm aluminum plate bending angle consistency of ± 0.05 °

Long life design Hydraulic system: oil temperature control at 45 ± 2 ℃, extending oil life by 3 times. Mechanical components: low-friction design (coefficient of friction <0.01). Maintenance cycle: hydraulic oil replacement cycle extended to 8000 hours.

Green manufacturing features Noise control: <68dB (78dB for conventional models). Zero leakage: fully sealed hydraulic system. Thermal management: Waste heat recovery rate >30%

Super stability Pressure fluctuation: <±0.1Bar (conventional ±2Bar). Temperature drift: 24 hours angle deviation <0.01°. Case: Angular drift of only 0.03° for 30 days of continuous operation.
