2D Wire Bending Machine
2D Wire Bending Machine

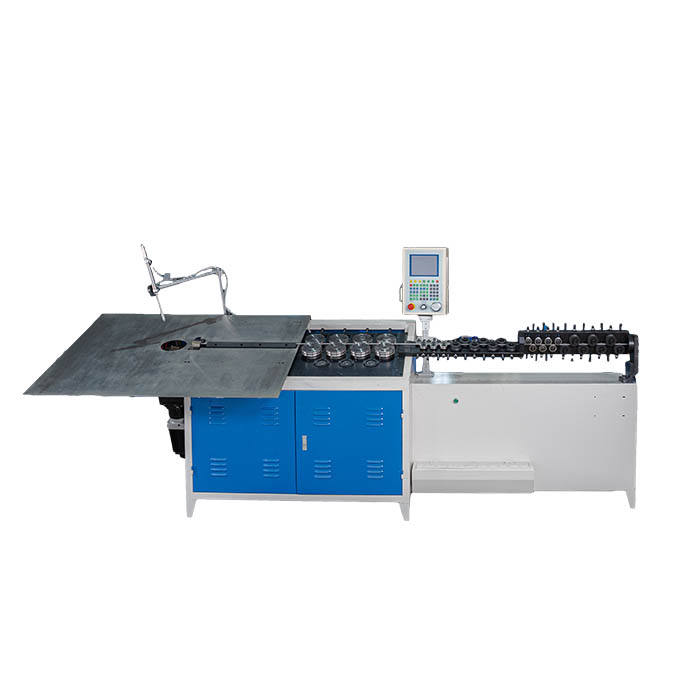

The 2D 4-axis wire bending machine is a full-automatic bending equipment for metal wires, controlled by a 4-axis CNC system and operated in a 2D plane. Driven by servo motors, it can accurately complete wire feeding, bending, rotating, and cutting in one operation to form various planar geometric shapes. Featuring high precision, stable forming, and high efficiency, it is suitable for iron wire, steel wire, stainless steel wire, copper wire, and other metal wires. It is widely used in hardware accessories, metal artware, automotive parts, springs, hooks, brackets, daily hardware, and other industries.
The 2D 4-axis wire bending machine is a full-automatic bending equipment for metal wires, controlled by a 4-axis CNC system and operated in a 2D plane. Driven by servo motors, it can accurately complete wire feeding, bending, rotating, and cutting in one operation to form various planar geometric shapes. Featuring high precision, stable forming, and high efficiency, it is suitable for iron wire, steel wire, stainless steel wire, copper wire, and other metal wires. It is widely used in hardware accessories, metal artware, automotive parts, springs, hooks, brackets, daily hardware, and other industries.
| No. | Product Name | Details |
| 1 | Model | XLC-2D-2-10-4A |
| 2 | Power Supply Voltage | Three-phase 380V 50Hz +ground wire Servo Motor |
| 3 | Number of Straightening Rollers | 28 groups (made of national standard Cr12) |
| 4 | Bending Die | 9 inner molds ，All are made of high-quality material SKD11/51, with a hardness of 58-62 ° |
|
5 |
Number of Feed Rollers |
4 groups, 8 pieces in total, 3 sets in total, wire diameter ranges are ①2-4mm, ②3-7, 8mm, ③ 6-9, 10mm, a total of 24 (pieces) = 3 (sets) * 8 pieces (4 groups * 2 (upper & lower)) (the wire feed wheel adopts national standard Cr12, fine polishing heat treatment hardness reaches 58 ° , wear resistant). |
| 6 | Number of Axes | 4 axes |
| 7 | Total Servo Motor Power | 10. 1 KW |
| 8 | Feed Servo Motor Power | 4.5 KW |
| 9 | Bending Servo Motor Power | 2.3 KW |
| 10 | Cutting Servo Motor Power | 2.3KW |
| 11 | Die Lift Servo Motor Power | 1.0KW |
| 12 | Cutting Force | Can cut 10mm diameter wire |
| 13 | Applicable Wire Types | Round wire, flat wire, square wire (applicable to any material wire) |
| 14 | Applicable Wire Diameter Range | 2-10mm iron wire standard |
| 15 | Data Storage | 10,000 sets of data, 300 actions per set |
| 16 | Feed Speed | Fastest 18m/min |
| 17 | Maximum Bending Speed | About 50 rpm Angle ±360 ° |
| 18 | Movement Direction | Inner mold – move down/up Outer mold – move down/up 360 ° forward and reverse rotation |
| 19 | Processing Efficiency | 8-10 pieces/min (300*300 square box as sample) |
| 20 | Bending Accuracy | ±0.5 mm |
| 21 | Feed Accuracy | ±0.5 mm |
| 22 | Cylinder | Three |
| 23 | Electromagnetic Valve | Three |
| 24 | Control System | Russian/English/Chinese (system with upload and download functions),Touch screen + button |
| 25 | Mechanical Performance | ① The mechanical action of the machine is controlled by the bending action and bending speed programmed by the microcomputer, and various instructions are issued to form products of various models and specifications.
② Motion control, automatic feeding, automatic material withdrawal, straightening, cutting, bending and forming |
