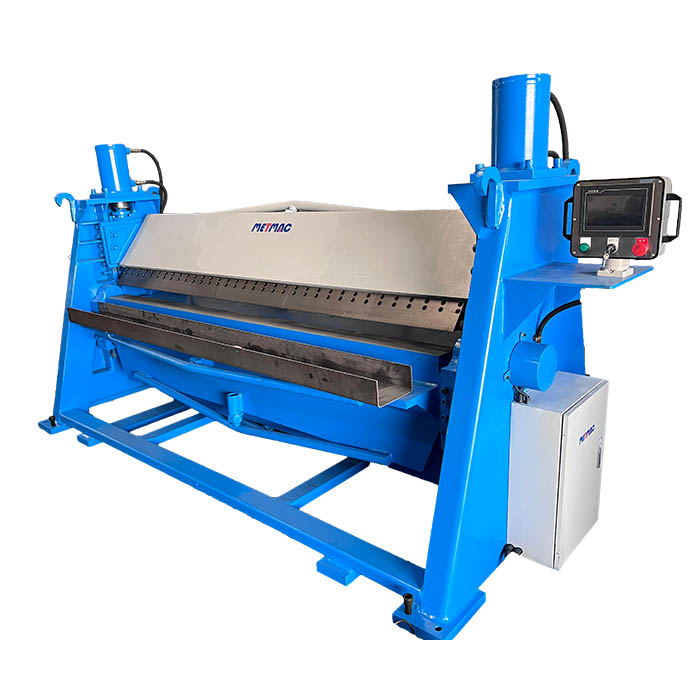

Heavy Duty Hydraulic Bending Machine
Heavy Duty Hydraulic Bending Machine
Heavy Duty Hydraulic Bending Machine
This heavy-duty hydraulic press brake features a heavy steel welded frame with stress-relieved treatment, ensuring high rigidity and minimal deformation.
It is equipped with a high-precision hydraulic system and imported hydraulic components, delivering stable performance and strong bending force.
Controlled by a CNC system, it provides accurate positioning and easy operation, supporting single, continuous, and manual working modes.
With high bending accuracy and efficiency, it is suitable for high-precision bending of mild steel, stainless steel, aluminum, and medium-to-thick plates.
Widely used in sheet metal fabrication, cabinet production, metal structures, and mechanical equipment manufacturing.
This heavy-duty hydraulic press brake features a heavy steel welded frame with stress-relieved treatment, ensuring high rigidity and minimal deformation.
It is equipped with a high-precision hydraulic system and imported hydraulic components, delivering stable performance and strong bending force.
Controlled by a CNC system, it provides accurate positioning and easy operation, supporting single, continuous, and manual working modes.
With high bending accuracy and efficiency, it is suitable for high-precision bending of mild steel, stainless steel, aluminum, and medium-to-thick plates.
Widely used in sheet metal fabrication, cabinet production, metal structures, and mechanical equipment manufacturing.
| Type | Description | Unit | Parameters | ||||||
| 1 | Folding thickness | Mild steel | mm | 0.2～6.0 | 0.2~4.0 | ||||
| Stainless steel | mm | 0.2～3.0 | 0.2~2.0 | ||||||
| 2 | Folding length | mm | 2000 | 2500 | 3100 | 4100 | 5100 | 6000 | |
| 3 | Folding angle | 20°～120° | |||||||
| 4 | Folding blade length | mm | 2000 | 2500 | 3100 | 4100 | 5100 | 6000 | |
| 5 | Max open height (upper beam) | mm | 200 | ||||||
| 6 | Stroke frequency (upper beam) | Spm | 8 | ||||||
| 7 | Folding beam swinging angle | 0°～123° | |||||||
| 8 | Stroke frequency (folding plate) | Spm | 8 | ||||||
| 9 | Oil tank capacity | L | 70 | ||||||
| 10 | Hydraulic system max working pressure | MPa | 25 | ||||||
| 11 | Dimension
(Length × Width × Height) |
mm | 3085 x1067
x2093 |
3585 x1067 x2093 | 4185 x1067
x2093 |
5185x1067x2093 | 6185x1067x2093 | 7185x1060x2093 | |
| 12 | Weight | kg | 5642 | 6042 | 6542 | 7042 | 7542 | 8042 | |
