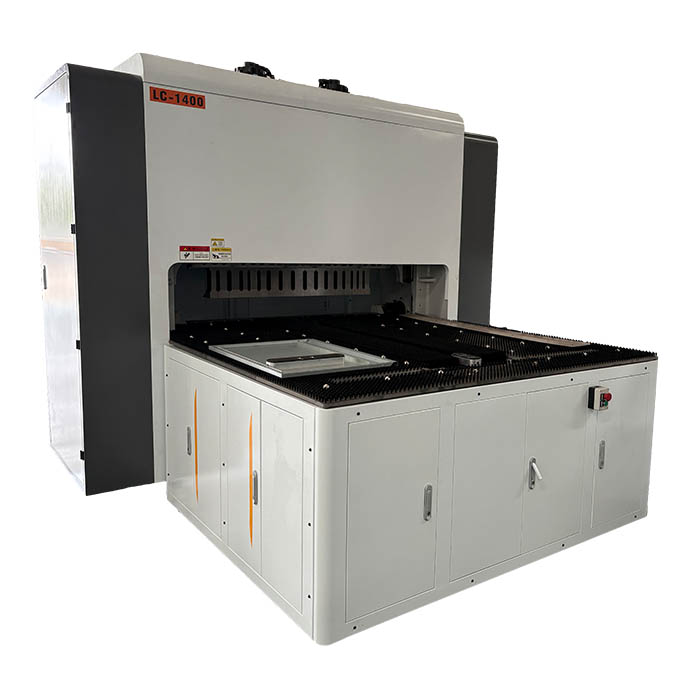

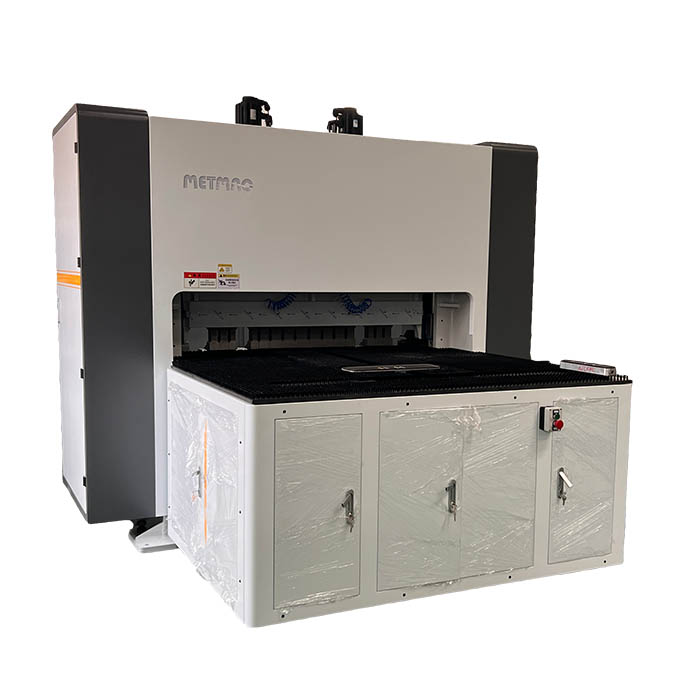

CNC Panel bender

Our CNC Panel bender is a sophisticated sheet metal forming machine tool that utilizes computer numerical control to accurately bend and form sheet metal into complex shapes. It represents a significant advancement over traditional manual or hydraulic press brakes by offering unparalleled precision, efficiency, and repeatability.

The core of the system involves a upper tool (punch) and a lower die. The sheet metal is placed on the die, and the punch descends to force the metal into the die cavity, creating a precise bend. The CNC system automates and controls all aspects of this process, including the bend angle, bend depth, back gauge position, and tool selection.

1. High Precision & Repeatability

Features high-precision servo motors, linear scales, and closed-loop feedback systems to ensure exceptional bending accuracy and repeatability of up to ±0.0004 inches (±0.01mm).

2. CNC Control System

Equipped with a user-friendly CNC system with a color touchscreen interface. It supports offline programming and can directly import CAD files (e.g., DXF, DWG) to automatically generate bending programs, drastically reducing setup time.

3. Automatic Compensation Systems

Automatic deflection compensation system ensures uniform bending angles across the entire length of the workpiece by countering machine frame deflection under load.

Real-time angle monitoring and automatic correction to compensate for variations in material properties.
