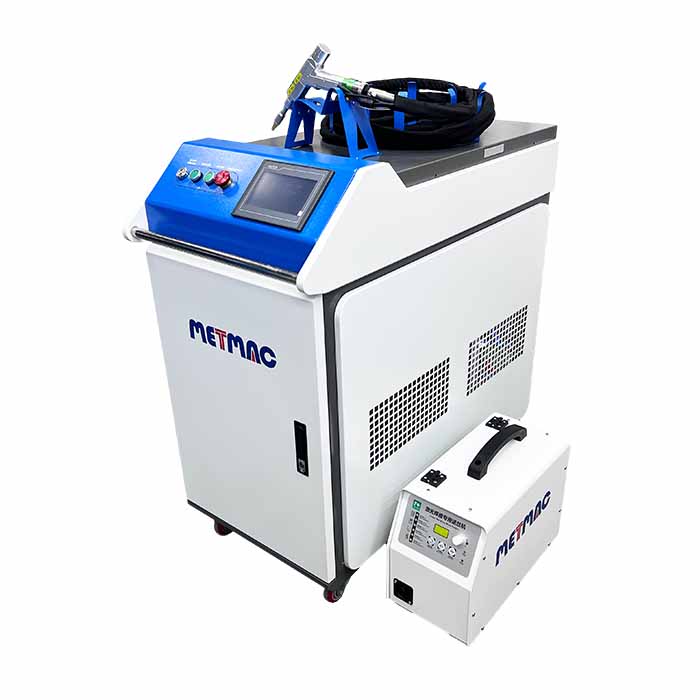

Handheld Laser Welding Machine
Handheld Laser Welding Machine
Handheld Laser Welding Machine
Handheld Laser Welding Machine
Handheld Laser Welding Machine
Fiber Laser Welding Technology for Carbon steel, stainless steel and Aluminum welding, Welding laser power is adjustable for thin and thick steel. Depend on the welding thickness the laser power can be chose with 1000W, 1500W, 2000W.
For thick steel welding no need for experience to use it. and the welding seam is smooth, free polishing, safe, and environmentally friendly.
Besides the welding function, it has the cleaning function for the surface of steel sheet and cutting off function for thin thickness of steel sheet.
The machine equipped with welding wire feeder which can be adjusted with speed to match the welding speed.
The welding speed is 5 times faster than the traditional welding way, easy to operate, even a freshman can use it freely after 1-hour simple training.
Equips with a high-quality fiber laser source with a long working life.
Easy operating and Simple training for welding.
Fast welding speed, 2~10 times faster than traditional welding.
Welding seam is smooth and beautiful, which reduce the following process and cost of grinding/polishing.
No deformation or welding scar, firm welding of the workpiece.
Laser welding has less consumables and long service life.
Safe working, more environmentally friendly
|
Model |
LW-1000 |
LW-1500 |
LW-2000 |
|
Laser Power |
1000W |
1500W |
2000W |
|
Welding Thickness |
0.5-1.5mm |
0.5-3.0mm |
0.5-4.0mm |
|
Laser Wave Length |
1070nm |
1070nm |
1070nm |
|
Welding Speed |
0-120mm/s |
0-120mm/s |
0-120mm/s |
|
Welding Swing Scope |
0-5mm |
0-5mm |
0-5mm |
|
Voltage |
220V/380V |
220V/380V |
220V/380V |
|
Cooling System |
Industrial Thermostatic Chiller |
||
|
Dimension |
115X60X130cm |
115X60X130cm |
115X60X130cm |
|
Weight |
350kg |
350kg |
350kg |
