3D Wire Bending Machine
3D Wire Bending Machine

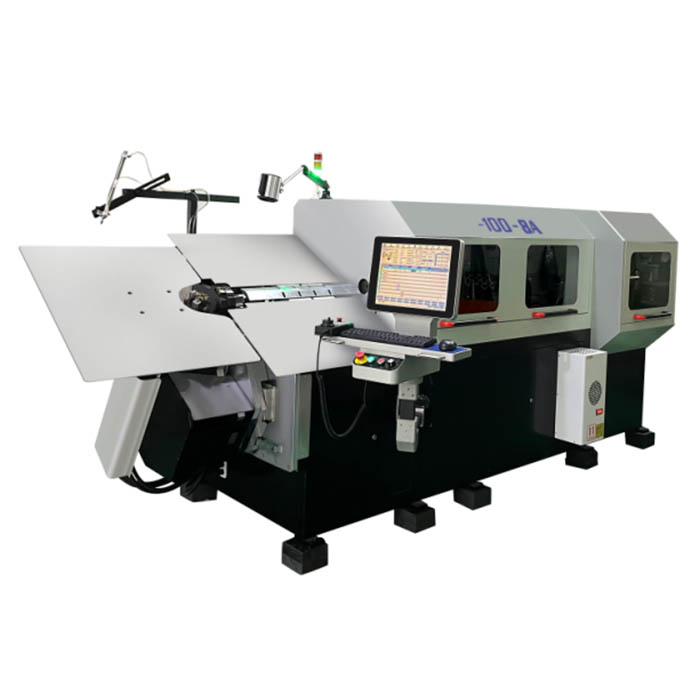

The 3D 8-axis wire bending machine is a high-precision automatic processing equipment controlled by an 8-axis servo CNC system, which can perform 3D bending, forming and cutting of metal wires. Through multi-axis linkage, it can realize one-time forming of complex three-dimensional shapes in space without secondary processing. It is suitable for iron wire, steel wire, stainless steel wire, copper wire, aluminum wire and other metal wires. Featuring high precision, high efficiency, strong stability and wide applicability, it is widely used in automotive parts, hardware brackets, kitchen and bathroom accessories, metal artware, springs, hooks, special-shaped wire components and other industries.
The 3D 8-axis wire bending machine is a high-precision automatic processing equipment controlled by an 8-axis servo CNC system, which can perform 3D bending, forming and cutting of metal wires. Through multi-axis linkage, it can realize one-time forming of complex three-dimensional shapes in space without secondary processing. It is suitable for iron wire, steel wire, stainless steel wire, copper wire, aluminum wire and other metal wires. Featuring high precision, high efficiency, strong stability and wide applicability, it is widely used in automotive parts, hardware brackets, kitchen and bathroom accessories, metal artware, springs, hooks, special-shaped wire components and other industries.
| model
project |
JC -100-8A Parameters |
| production line | Soft material: 5-10mm
Hard material : 5-8mm |
| Processing Journey | Fold back (cutting blade to 850mm from the front end of the sheet metal). |
| Number of control axes | 8-axis |
| Total power | 20.6 KW / 20.1 KW |
| Rotary motor power | 2.7KW |
| Power of wire feeding motor | 5.5KW |
| Angle Lifting Motor Power | Sanyo 2.0KW (or Mitsubishi 1.5KW) brake. |
| Power of internal/external angle motor | 2.7KW/2.7KW |
| Pallet lifting motor power | 1.0KW |
| Cutter/Left and right movement motor power | 2.0KW/2.0KW |
| Maximum wire feeding speed | 40M/min |
| Wire feeding accuracy | 300mm ±0.1mm |
| Corner accuracy | 9 0 ° ± 0.1 mm |
| Operating voltage | Three-phase 380V ( ±20V ) |
| Main unit weight | 3800KG |
| Machine dimensions (length, width, height) | 4420 mm * 2100 mm * 1600 mm |
