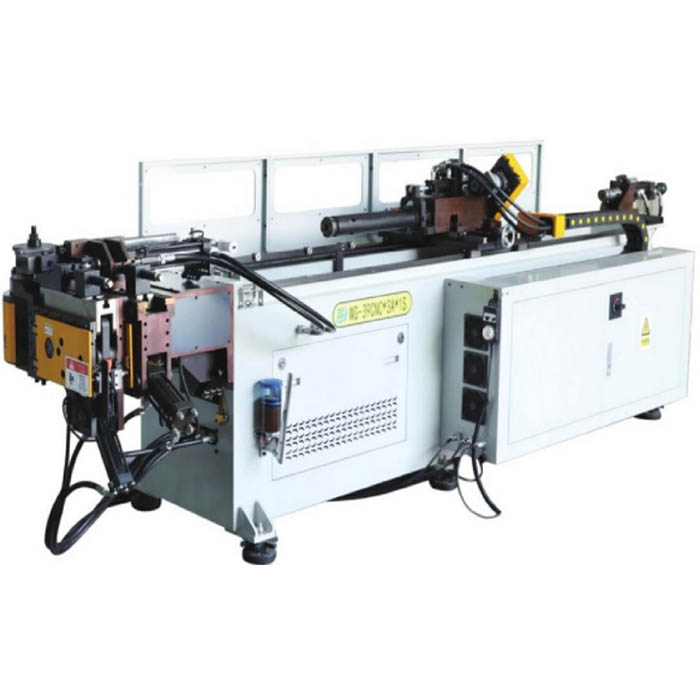

CNC Single Head Tube Bending Machine
CNC Single Head Tube Bending Machine

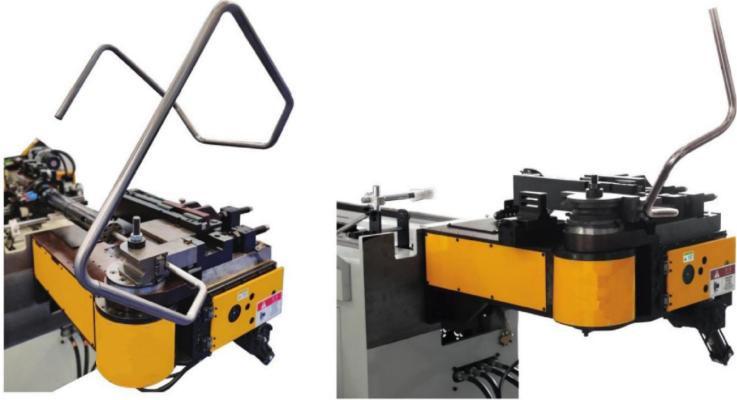

CNC single-head pipe bender is a high-precision metal tube bending machine controlled by a numerical control system, equipped with a single bending head. It can automatically perform bending operations on one end of round tubes, square tubes, and special-shaped tubes. By setting parameters such as bending angle, radius, and speed through the program, the machine can automatically complete feeding, clamping, and bending with high accuracy, easy operation, high efficiency, and good consistency. It is widely used in pipe bending for furniture, automotive parts, hardware, fitness equipment, air conditioning pipelines, guardrails, and other industries.
CNC single-head pipe bender is a high-precision metal tube bending machine controlled by a numerical control system, equipped with a single bending head. It can automatically perform bending operations on one end of round tubes, square tubes, and special-shaped tubes. By setting parameters such as bending angle, radius, and speed through the program, the machine can automatically complete feeding, clamping, and bending with high accuracy, easy operation, high efficiency, and good consistency. It is widely used in pipe bending for furniture, automotive parts, hardware, fitness equipment, air conditioning pipelines, guardrails, and other industries.
| Main specifications/models | WG-39CNC×3A-1S
WG-39CNC×5A-2S-TW |
WG-50CNC×3A-1S
WG-50CNC×5A-2S-TW |
WG-65CNC×3A-1S
WG-65CNC×5A-2S-TW |
WG-80CNC×3A-1S
WG-80CNC×5A-2S-TW |
|
| Maximum bending capacity (CLR1.5D) | Ø38×1.5t | ×50.8×2.0t | Ø63.5×2.0t | Ø76×2.0t | |
| *Maximum Bending Radius | 150mm | 250mm | 250mm | 250mm | |
| Maximum bending angle | 190° | 190° | 190° | 190° | |
| *Maximum core length | 2600mm | 3200mm | 3500mm | 5000mm | |
| *Maximum feed length/straight feed | 2300mm | 2500mm 1-axis | 2500mm 1-axis | 3000mm | |
|
Working Accuracy |
Bend Angle | ±0.1° | ±0.1° | ±0.1° | ±0.1° |
| Tilt angle | ±0.1° | ±0.1° | ±0.1° | ±0.1° | |
| Feed length | ±0.1mm | ±0.1mm | ±0.1mm | ±0.1mm | |
| Machine size mm | 4470*1400*1300 | 5000*1400*1500 | 5000*1500*1500 | 6500*2200*1700 | |
| Machine weight kg | 1500/2500 | 3000/3600 | 3800/4500 | 7000/8000 | |
