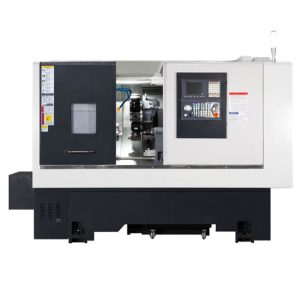

Live tool turret CNC lathe with Y-axis CTXY
Live tool turret CNC lathe with Y-axis CTXY
One-piece casting provides high vibration damping capacity and smaller
deformation.
The 30° inclined bed design facilitates manual change workpieces by operators
and is also conducive to chip removal and collection.
Standard configuration includes a 12-position servo-driven tool turret with fast
tool changing capability.
The tailstock can be controlled manually or programmed.
The machine is equipped with Y-axis and tailstock.
The machine can process various kinds of workpieces

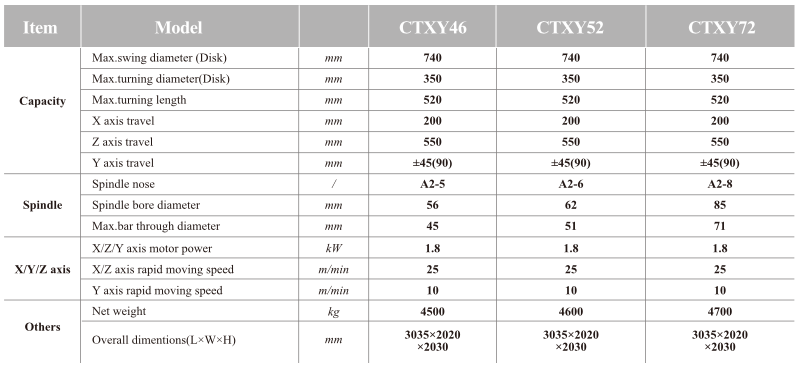

Specification
One-piece casting provides high vibration damping capacity and smaller
deformation.
The 30° inclined bed design facilitates manual change workpieces by operators
and is also conducive to chip removal and collection.
Standard configuration includes a 12-position servo-driven tool turret with fast
tool changing capability.
The tailstock can be controlled manually or programmed.
The machine is equipped with Y-axis and tailstock.
The machine can process various kinds of workpieces
